TOTBOOK: System Architecture & Technical Report

Tauri & Rust Desktop Powertrain Companion

1. Executive Summary

TOTBOOK is a hybrid engineering notebook desktop application. It integrates the structured, flowable layout of a rich text editor (powered by Quill.js) with the spatial, freeform flexibility of a vector drawing board (powered by Fabric.js), enabling users to instantly import, play audio, and view videos directly inside the document in the blink of a second.

The application is built as a desktop app using Tauri (Rust backend + HTML/JS/CSS frontend) and packaged in a modular format. It addresses the fundamental conflict of modern document editors: how to keep freehand sketches, annotations, and media files locked to specific paragraphs (logical flow) while allowing the text itself to wrap, grow, and move dynamically (reflow layout).

2. System Architecture Overview

TOTBOOK uses a hybrid architecture combining a local web frontend with a high-performance Rust backend:

graph TD
    A[Frontend: HTML/CSS/JS] <-->|Tauri IPC Invoke/Listen| B[Backend: Rust Tauri Core]
    A --> C[Quill Editor Layer 1]
    A --> D[Fabric.js Canvas Layer 2]
    A --> E[Floating Media Blocks Layer 3]
    A --> F[AnchorManager Sync Loop]
    B --> G[Zip Archive Bundle File IO]
    B --> H[Google OAuth PKCE Redirect Server]
    B --> I[PowerShell System Clipboard Bridge]
    B --> J[Single Instance Process Manager]
Figure 1: High-level System Architecture & Module Interaction Map

Technical Stack:

3. The Multi-Layered Workspace

The interface manages overlapping layers of interaction within a unified zooming/panning viewport:

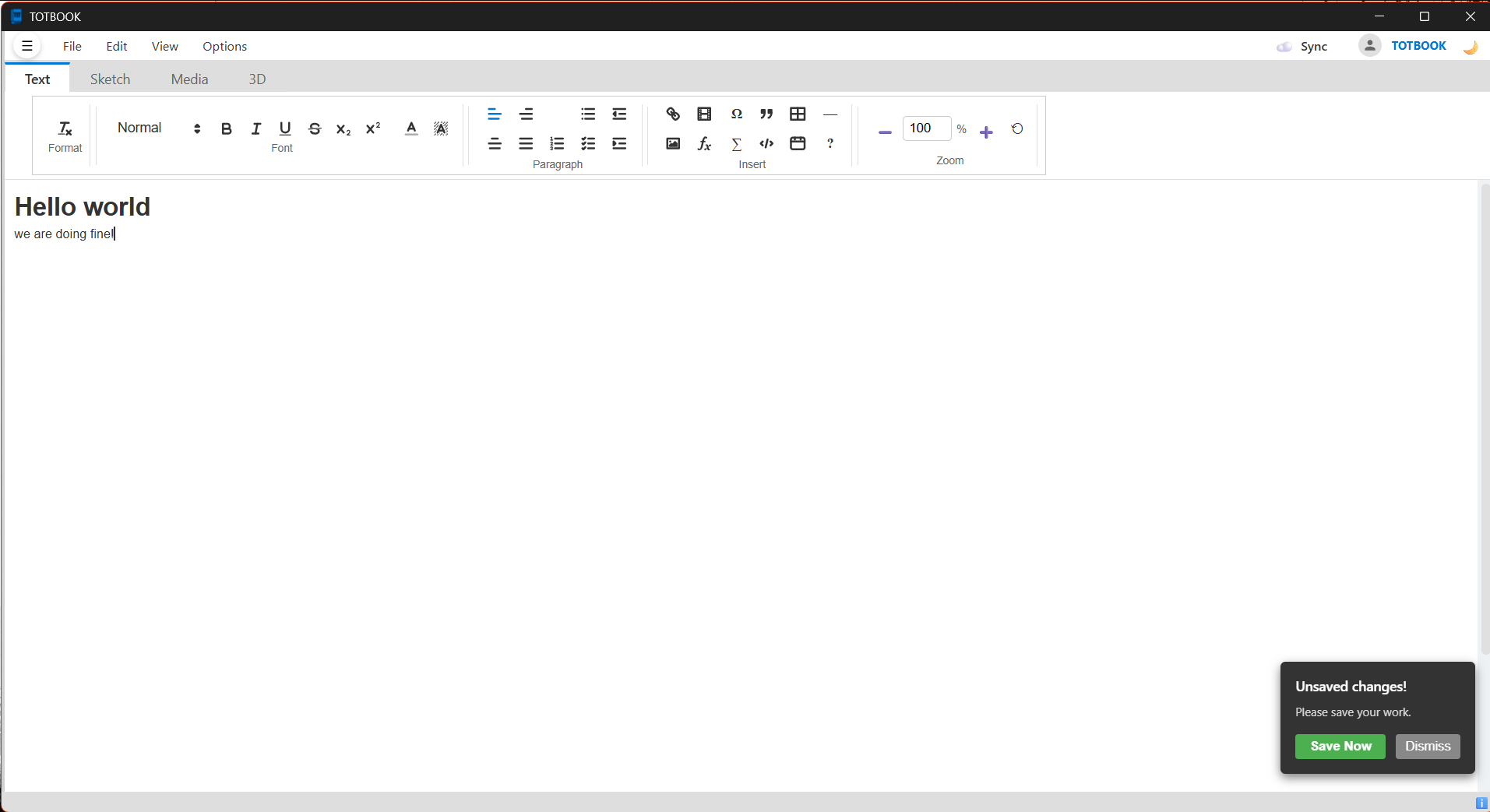

TOTBOOK Workspace UI Figure 2: Main workspace window showing multi-layered reflow document structure
[Viewport Container: #zoom-outer] (Handles scrolls & mouse coordinates)
    └── [Scalable Container: #zoom-inner] (Applies CSS Zoom or Transforms)
         └── [Document Layer: #document-layer] (Common coordinate system)
              ├── Layer 1: [Quill Text Editor: #editor] (Underneath)
              ├── Layer 2: [Canvas Overlay: #drawing-canvas] (Top transparent vector board)
              └── Layer 3: [Floating Blocks] (Draggable text boxes & media cards)

Zooming & Panning Modes

To provide a smooth visual experience across different tasks, TOTBOOK implements two distinct zooming paradigms:

  1. Text Mode (Reflow Zoom): Zooming uses the CSS zoom property on #zoom-inner. This scales the typography and editor interface natively. Text wraps properly at the margins, and browser-native scrolling is maintained, preventing layout truncation.
  2. Sketch Mode (Vector Zoom): Zooming uses CSS 2D transforms (translate and scale) on #zoom-inner with a 0 0 transform-origin. Panning is supported using middle-mouse drag, stylus/pen inputs, or a designated "Pan Tool" (Hand).
    • Pointer Zoom: Zooms relative to the mouse cursor position.
    • Center Zoom: Zooms relative to the viewport center.

4. Anchor & Reflow System (AnchorManager)

The core engineering challenge in hybrid document editors is that rich text flow is vertical and dynamic (reflow), whereas freehand drawings and media blocks are absolute, pixel-positioned entities. If a user inserts paragraphs in the text, absolute drawings become misaligned with their corresponding text.

TOTBOOK solves this using AnchorManager.js:

sequenceDiagram
    participant Q as Quill Editor
    participant AM as AnchorManager
    participant FM as Floating Media Card
    participant FC as Fabric Canvas Shape

    Note over AM: Element is bound
    AM->>Q: Raycast to nearest line
    Q-->>AM: Return line character index
    Note over AM: Store index & delta Y offset

    Q->>AM: Event: 'text-change' (Delta: retain, insert, delete)
    AM->>AM: Adjust character indices of all anchors

    loop requestAnimationFrame (60 FPS reflow)
        AM->>Q: Get bounding box of character index
        Q-->>AM: Return screen coordinates
        AM->>FM: Update style.top = lineTop + offsetY
        AM->>FC: Set Shape top = lineTop + offsetY
        Note over FC: Render Fabric Canvas
    end
Figure 3: Sequential flow of coordinates tracking, anchor shifts, and frame reflow updates

Core Features:

  1. Binding: When a shape is drawn or a media card is spawned, AnchorManager identifies the nearest text line in Quill, fetches its character index (this.quill.getIndex(line)), and stores the vertical distance (offsetY) between the element and the line top.
  2. Reflowing: A continuous requestAnimationFrame render loop calculates the current vertical offset of each character index (using quill.getBounds(index)) and updates the coordinates of the associated HTML nodes (style.top) and Fabric canvas objects (top).
  3. Stabilization Mode: During document load, layout transitions, or undo/redo actions, the document heights and font layouts might shift rapidly. To prevent visual elements from jumping, startStabilization locks elements to their current screen coordinates and updates their logical offsetY values in real-time until the layout settles.
  4. Drag/Resize Pause: When a user drags or resizes a drawing or media card, its anchoring is temporarily paused to avoid interference from the reflow loop. Once the action is complete, it is re-bound to the nearest text line at its new position.

5. In-Text Interactive Features (Quill Custom Blots)

The primary text flow managed by Quill is enhanced with interactive inline modules that are serialized directly within the document delta structure.

Telegram-Style Quizzes (QuizBlot):

The application includes a custom QuizBlot (inheriting from Quill's BlockEmbed) registered as quiz.

File Attachments (AttachmentBlot):

Registered as attachment, this block embed represents a local document link or copy card.

Custom Formatting & Scientific Blots:

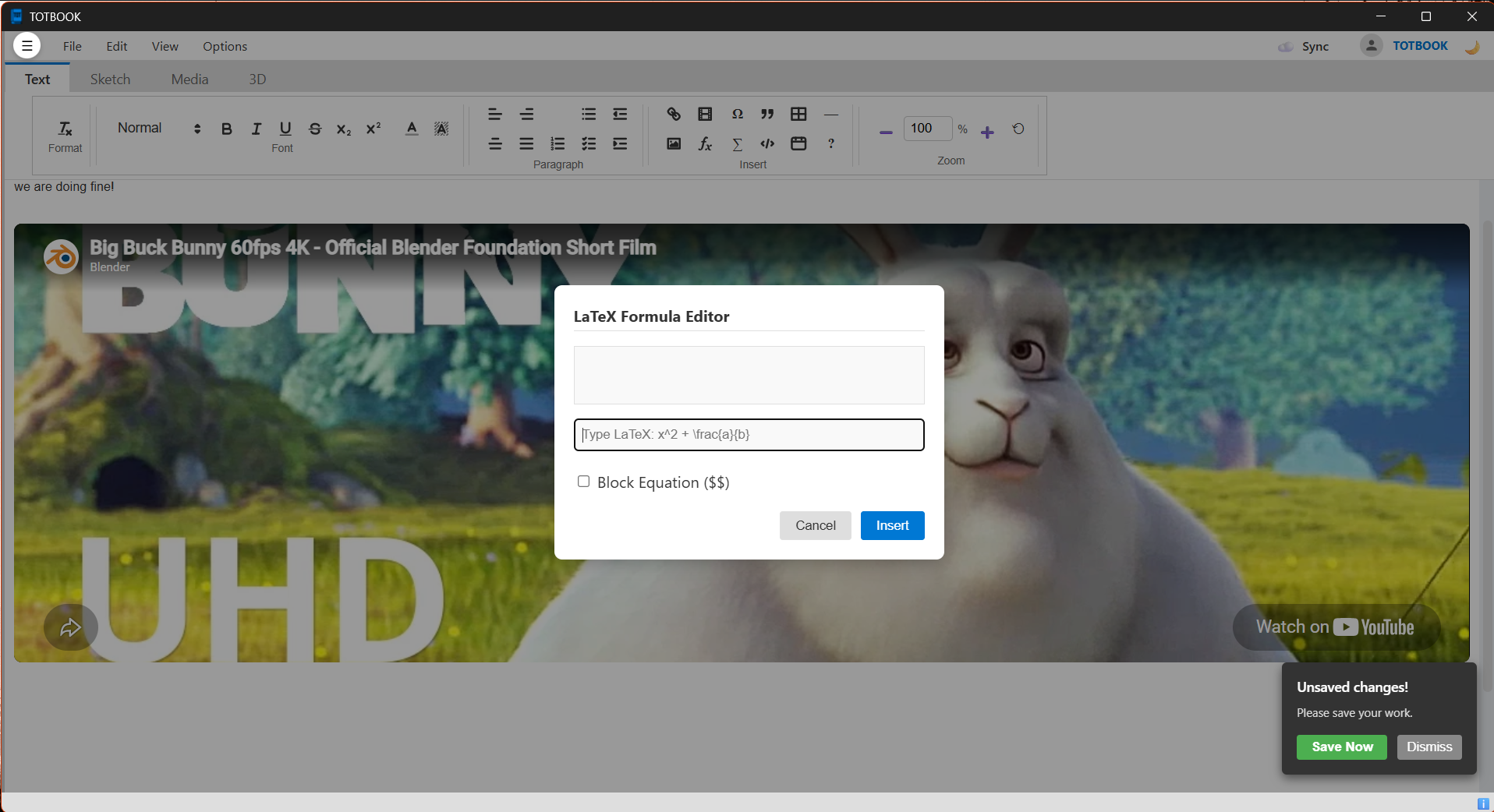

LaTeX Formula Editor Figure 4: LaTeX Formula Editor

6. Video & Audio Importing and Recording

TOTBOOK provides robust features for importing and recording multimedia assets, placing them as movable cards or inline media.

Audio Manager & Voice Recording:

Users can select "Import Audio" or "Record Audio" from the Media ribbon:

Video Embed Manager:

Clicking the Video button opens a custom embed modal supporting watch links and direct files:

  1. YouTube Watch Links: Automatically parses watch URLs (using regex /([a-zA-Z0-9_-]{11})/) and translates them into responsive youtube.com/embed iframe URLs.
  2. Google Drive Video Links: Converts standard file share links (e.g., /file/d/[id]) into direct iframe preview URLs (drive.google.com/file/d/[id]/preview).
  3. Direct Video Files: Links pointing directly to .mp4, .webm, or .ogg files are parsed as HTML5 videos. These are inserted inline into Quill using a custom VideoBlot (html5video tag blot) with native browser player controls.

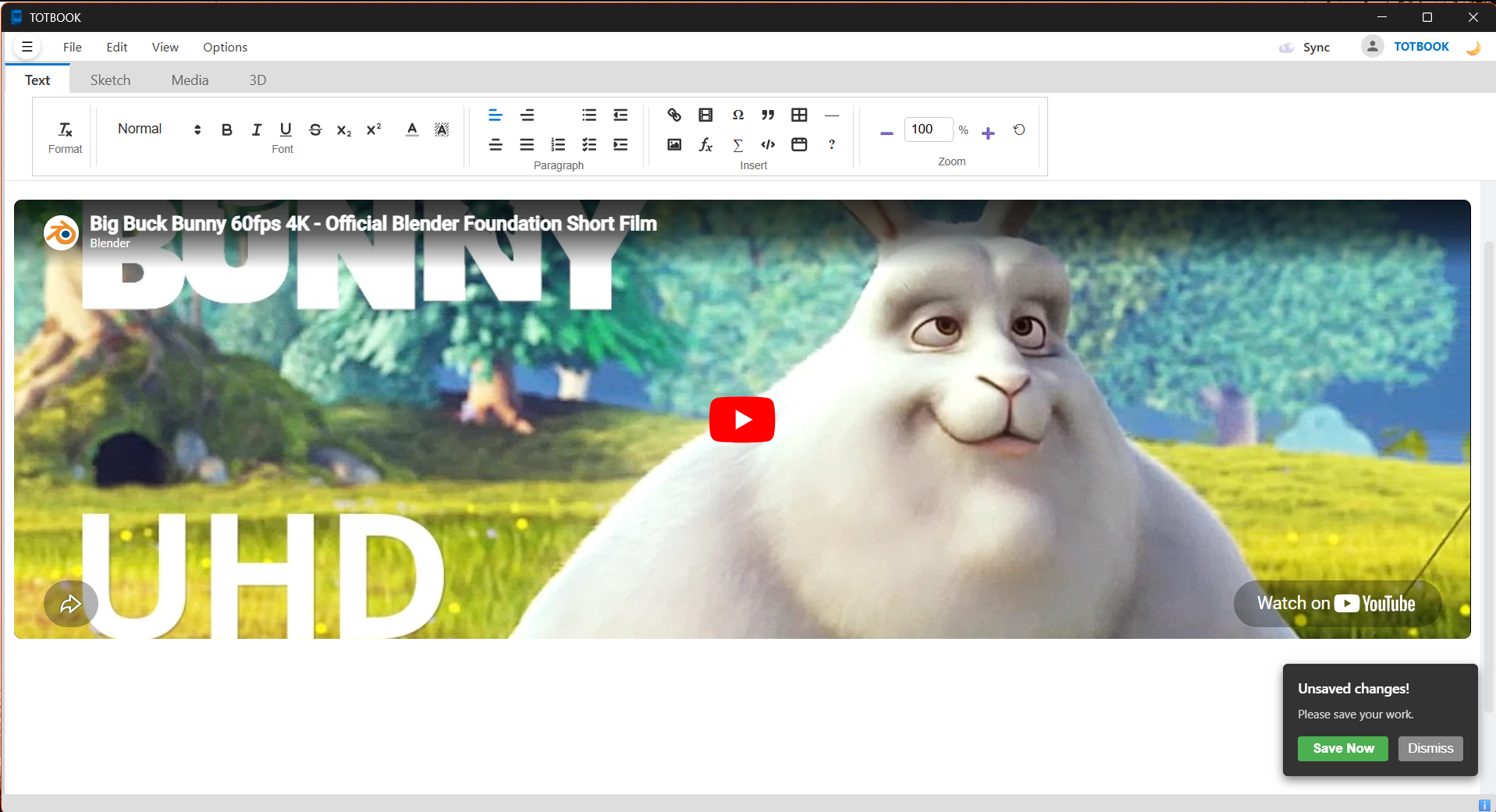

YouTube Video Embed Figure 6: YouTube Video Embed

7. File Attachment & File Import System

The application handles external attachments using two main methods via the Tauri API:

[User Selects File Attachment]
   ├── Option 1: "Link File" (Create Shortcut)
   │     └── Creates an absolute pointer pointing directly to the file on disk.
   │
   └── Option 2: "Attach File" (Import Copy)
         ├── Invokes Rust backend: import_file_to_session(srcPath)
         ├── Copies the file into <temp_session_dir>/media/
         ├── Resolves filename conflicts by appending a Unix timestamp if the file exists.
         └── Returns a portable, relative link: `media/file_timestamp.ext`

File Execution:

Clicking an attachment card or launching a file via double-click triggers Tauri IPC Command open_media_file:

8. Fabric.js Canvas & Drawing Engine

The vector drawing layer covers the entire document height and coordinates directly with the layout engine:

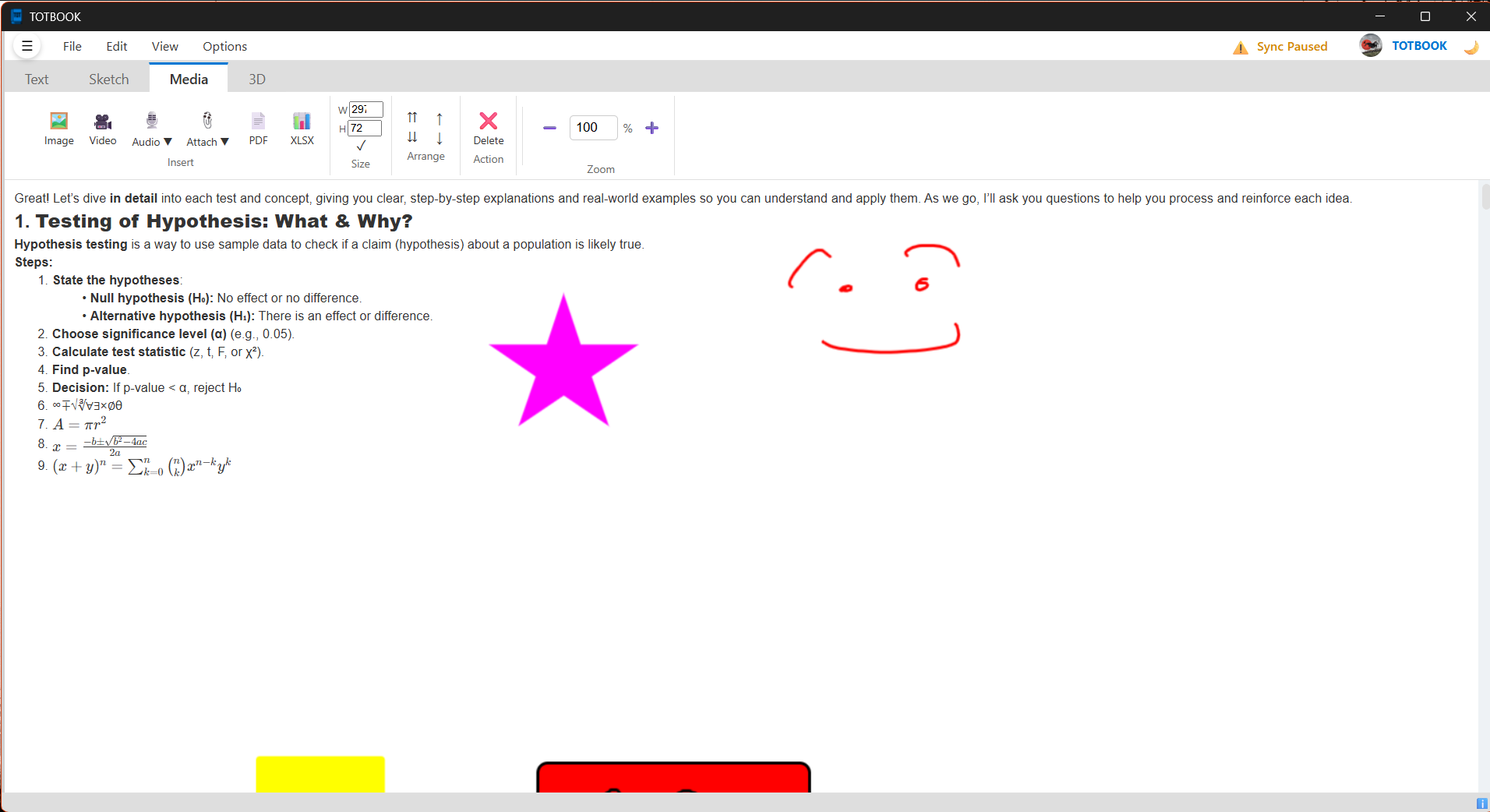

Fabric.js Vector Canvas Figure 5: Fabric.js Vector Canvas

Ink Tools:

Magic Ink (Ink-to-Shape Recognition):

When drawing with "Magic Ink" enabled, paths are analyzed in shape_logic.js on pointer release:

  1. Line Check: If the distance between the starting and ending points exceeds 85% of the path's bounding-box diagonal, or if width/height are very small, it is converted into a straight vector line.
  2. Radius Variance (Circle/Ellipse Check): Calculates the center point of the path's bounding box and measures the radial distance to each resampled point on the path. If the Coefficient of Variation (CV) of these radii is less than 0.11, the path is converted into a vector Ellipse.
  3. Polygon Simplification (RDP): Paths that are not lines or circles are simplified using the Ramer-Douglas-Peucker (RDP) algorithm (with a dynamic tolerance threshold, \(\epsilon = \text{diagonal} \times 0.05\)).
    • 3 points remaining \(\rightarrow\) Triangle.
    • 4 points remaining \(\rightarrow\) Rectangle (if matching bounding box corners) or Diamond.
    • 5 points remaining \(\rightarrow\) Pentagon.
    • 6 points remaining \(\rightarrow\) Hexagon.
    • 8–14 points remaining \(\rightarrow\) Star (if variance is high) or Circle (if variance is low).
  4. Right-Angle Snapping: If a triangle's corner angle is within \(\pm 15^\circ\) of \(90^\circ\), the geometry is snapped to create a right-angle triangle.

Infinite Canvas Expansion:

If a user draws or drags a shape near the bottom of the canvas (within 300px), the application dynamically increases the #document-layer height, appends line breaks to the Quill text editor to grow the scroll container, and resizes the Fabric canvas to match.

9. Interactive Media Viewers

Floating media blocks (.media-block) support multiple document formats, operating within dedicated, sandboxed containers:

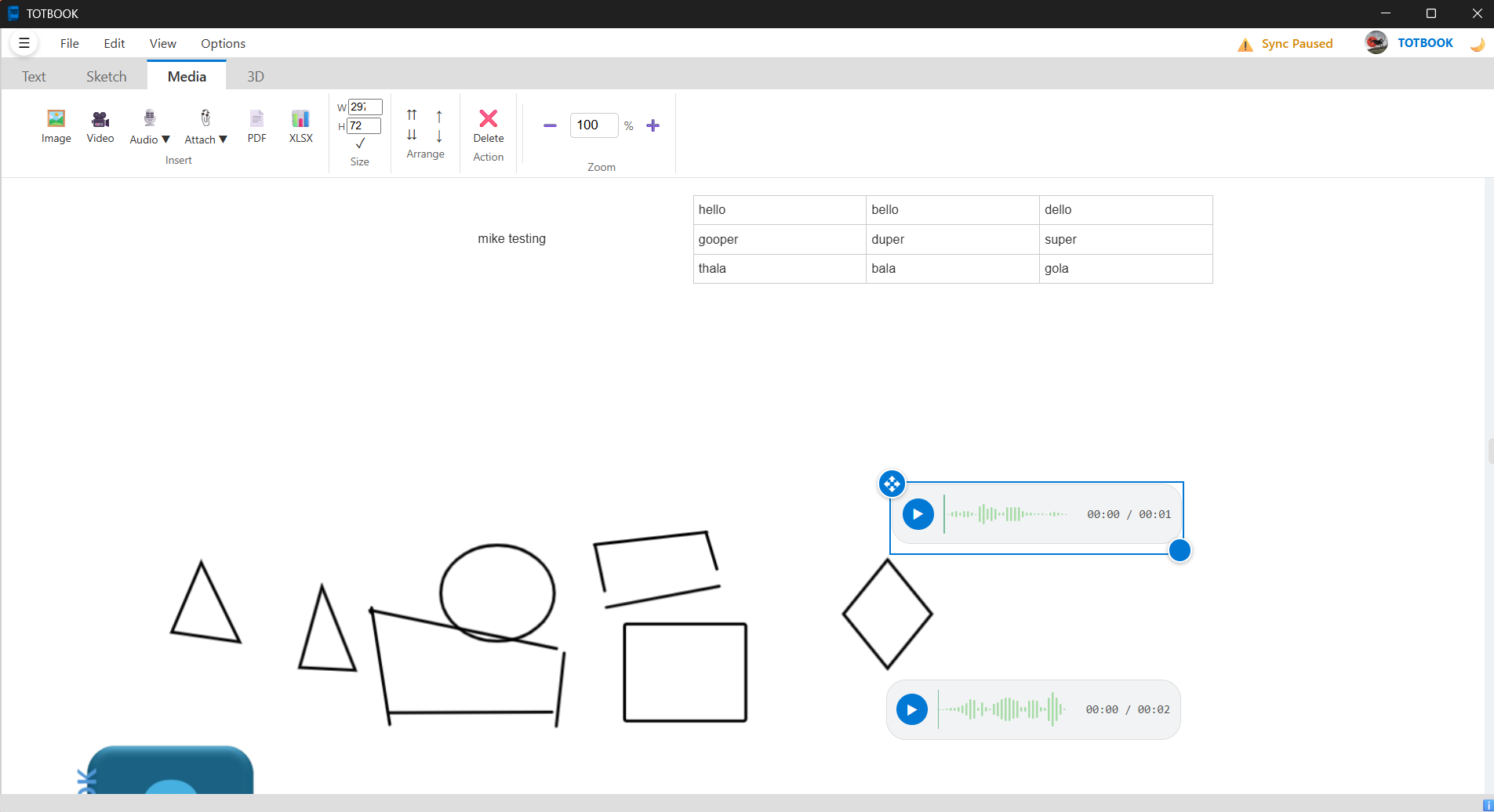

SheetJS Spreadsheet Figure 7: SheetJS tabbed spreadsheet also audio waveform

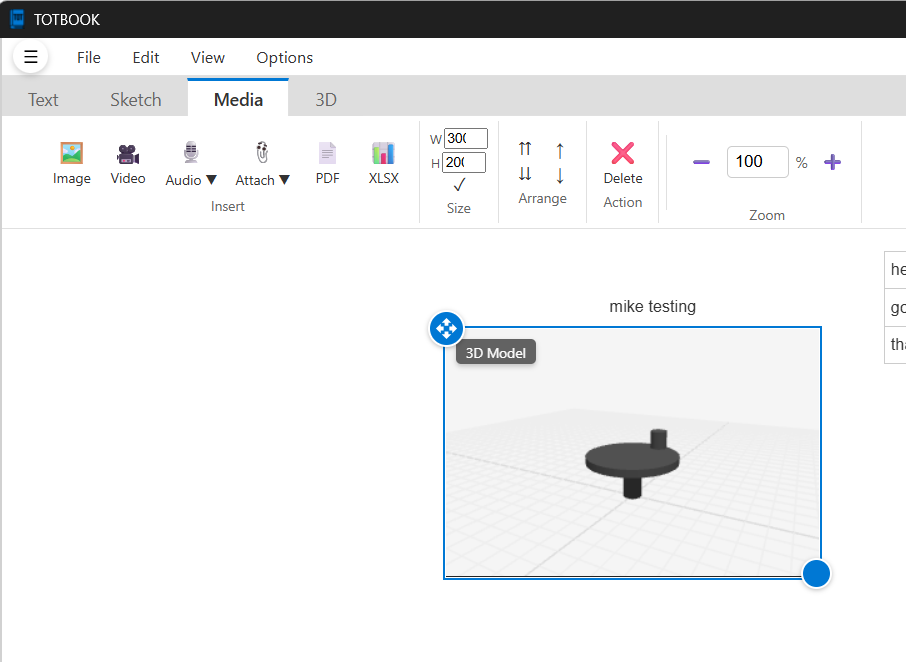

Three.js 3D model viewer Figure 8: Three.js WebGL interactive 3D model viewer
  1. Spreadsheets (SheetJS): Fetches and parses local .xlsx / .xls spreadsheets, constructing a sheet selector tab bar. Clicking a tab translates the worksheet data into styled HTML tables with dynamic scrollbars.
  2. PDF Reader (PDF.js): Renders PDF documents sequentially onto canvases to optimize memory usage and keep the UI responsive.
  3. 3D Models (Three.js WebGL): Uses a pivot-group normalization routine to auto-scale models (STL, OBJ, GLTF, GLB, FBX, PLY) to a standard bounding scale (50 units) and align them on a grid. Users can rotate, zoom, and pan the model using WebGL rendering.

10. Desktop Integration & Storage System (Tauri & Rust)

The Rust backend handles heavy input/output tasks, desktop features, and system integrations:

Project Bundle Format (.totbook):

A .totbook project is a zipped archive containing:

project_file.totbook (ZIP)
├── manifest.json (document geometry, text delta, media indices, view settings)
└── media/
    ├── media_1718000000_0.png
    ├── voice_note.webm
    └── report.pdf

Cloud Synchronization:

System Integrations:

System Architecture Constraints Summary

This hybrid solution maintains separation of concerns, letting high-performance filesystem and encryption algorithms execute natively in Rust, while utilizing web technologies for responsive document reflow layouts and interactive drawing canvases.
